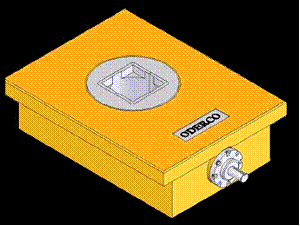

Rotary Tables

Oderco Rotary Tables are equipped with electrical independent drive. The opening is form 17 ½” to 49 ½”. The static load is rated from 250 tons to 750 tons.

  • Designed in accordance with API-7K and DNV-OS-E101
  • Analyzed with Cosmos (FE Program) to minimize the sizes and weights
Max. Opening Diameter (In) Static Load Capacity (Tons) Rotating Speed (RPM) Weight (lbs)
17 ½ 250 450 6,500
27 ½ 500 450 10,500
37 ½ 650 350 12,400
49 ½ 750 350 21,800
